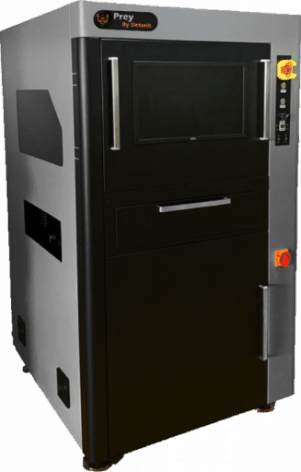

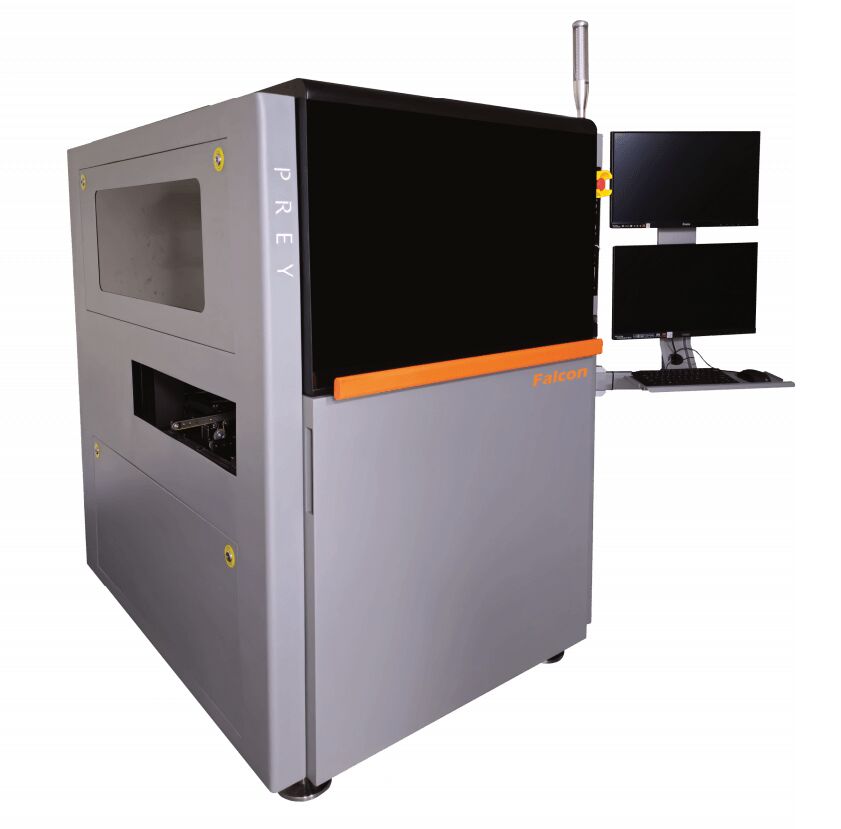

LineMaster Falcon

Affordable Inline 2D-3D AOI

The LineMaster Falcon by Prey AOI solution offered by ASC International provides manufacturers with a solid platform to validate the overall variables associated with component placement. State-of-the-art Detech2 Technology software detects attributes such as absence – presence, polarity, OCR, solder inspection and lead quality all with very low false call rates. The LineMaster Falcon by Prey provides an exceptional value proposition that is truly unmatched in the industry. Call ASC today for a free consultation and onsite evaluation.

Description

Key Features & Benefits

  • Fully Automated Inline Automated Optical Inspection
  • 12 MP High-Resolution Color Camera with Detech2 Technology
  • Windows 11 Pro OS
  • Industry Leading – Ease of Use Programming, Lowest False Calls
  • Dual Laser Option for Lead and Component Height Verification
  • Fully Integrated SPC Run-time charts and Custom Reports
  • Offline Defect Review Station Software
  • Offline Programming Software
  • Two-Year, End-User Warranty with Technical Support
  • 20″ x 20″ Inspection Area – Up to 48″ x 20″ Extended Travel
  • Hardware/Software Reference and Online Help



Specifications

Technology Image Modeling – Algorithm Based
Defect Analysis Missing, Incorrect Part, Bridging, Polarity, Tombstone
Solderability, Alignment, Lifted or Bent Leads, etc.
Board Capacity 20″ x 20″ Standard – Up to 48″ x 20″
Lighting Scheme RGBW – UV (Optional)
Lateral Resolution (X-Y) 7um – 10µm – 15um
Minimum Component Size 01005
