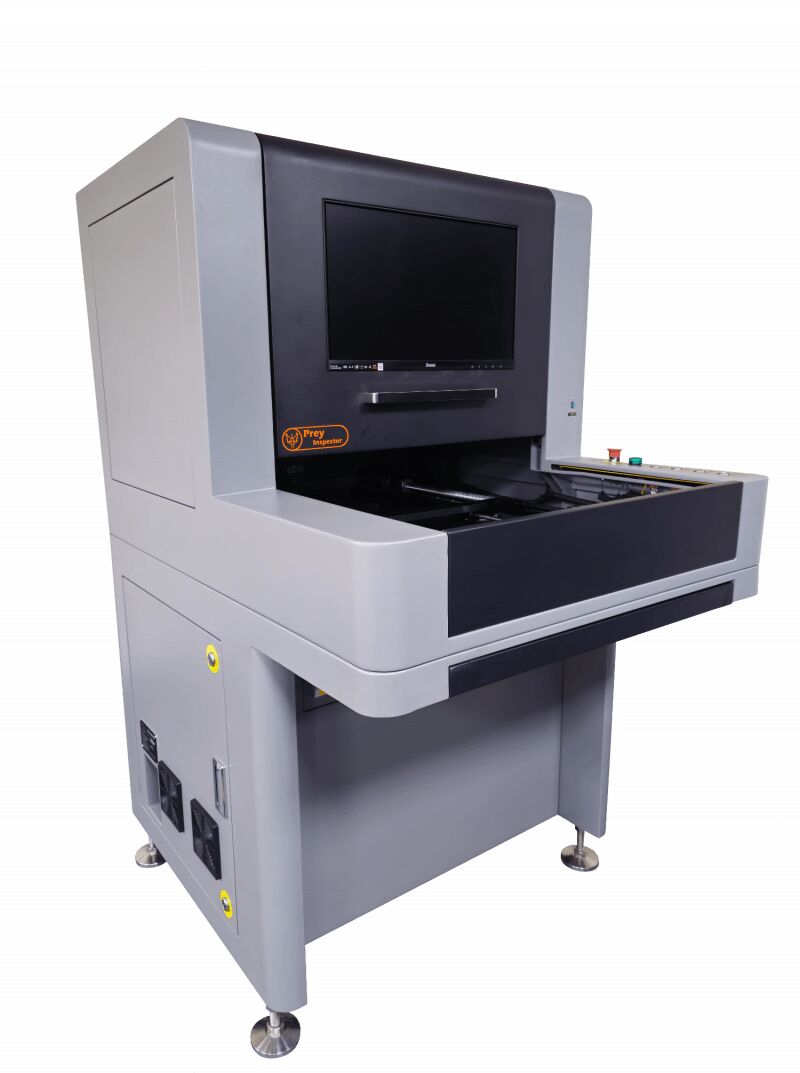

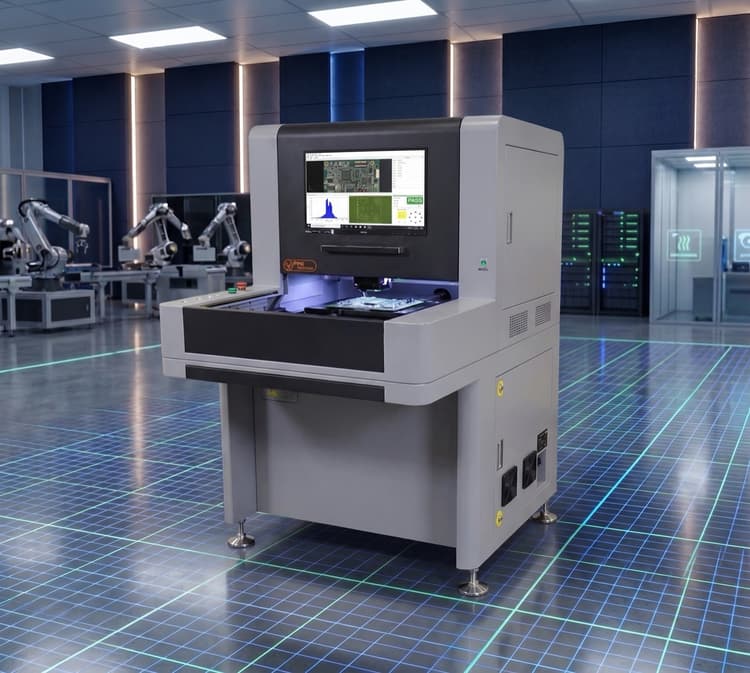

Description
Key Features & Benefits
- Fully Automated 3D SPI and AOI Technology
- Ultra High-Resolution Imaging
- Windows 11 Pro OS
- Fully Integrated SPC Run-Time Charts and Custom Reports
- Offline Defect Review Station Software
- Two-Year, End-User Warranty with Technical Support
- 20″ x 16″ Inspection Area – Up to 20″ x 24″ Optional
- NIST Traceable Standard
- Hardware/Software Reference and Online Help
AOI Specifications | |
|---|---|
| Technology | Image Modeling – Algorithm Based |
| Defect Analysis | Missing, Incorrect Part, Bridging, Polarity, Tombstone |
| Solderability, Alignment, Lifted or Bent Leads, etc. | |
| Board Capacity | 20″ x 16″ Standard – Up to 20″ x 24″ Optional |
| Lighting Scheme | RGBW – UV Lighting (Optional) |
| Lateral Resolution (X-Y) | 10µm – 15um |
| Minimum Component Size | 01005 |
SPI Specifications | |
|---|---|
| Technology | Structured White Light – Phase Shift Interferometry |
| Height Accuracy | 1µm (0.04 mils) |
| Gauge R&R | <<10% (+/- 40% Tolerance) |
| Z Resolution | 0.20 µm (.008 mils) |
| Lateral Resolution (X-Y) | 4µm (.15 mils) |
| Minimum Paste Deposit | 51µm (2 Mils) |
