ASC International is your Global supplier of 3D Solder Paste Inspection Equipment. Check out our full line of 3D SPI equipment to see how we can increase your production yields and overall product quality through a strategic implementation of ASC’s many unique 3D Solder Paste Inspection solutions. Contact ASC International or a dealer near you for a live onsite demo of our 3D Solder Paste Inspection systems.
In the fast-paced and precision-driven world of electronics manufacturing, solder paste plays a pivotal role in ensuring that electronic components are securely attached to printed circuit boards (PCBs). However, even the most well-established processes can be prone to defects, especially when solder paste is applied incorrectly. Common issues such as insufficient paste or misalignment of components can compromise the quality of the final product, leading to failures in functionality and potentially costly repairs.
At ASC International, we are committed to providing Solder Paste Inspection (SPI) solutions that address these challenges and help manufacturers improve the overall quality and efficiency of their production lines.
Solder paste is essential in reliable electrical connections on a PCB. Still, we are aware that these are the different types of troubles that most manufacturers face when it is not applied correctly. This problem is one of the widespread issues. Since we sometimes do not use enough paste, this results in less strong solder joints. These are liable to malfunction with time due to stress or thermal cycling, which will affect the quality of our final product.
The other serious problem could be the mis-matched of Components. It occurs when solder paste is not accurately placed based on the placement of the component being soldered. This might have been due to incorrect design of the stencils, improper placement of PCBs, or faulty machinery used to place them. How much prevention is very important for the highest standards in production.
At ASC International, we have provided solutions to overcome some of the most common problems associated with the solder paste application process through Solder Paste Inspection. Our advanced SPI systems utilize the latest technology to detect solder paste application problems in real-time, enabling us to catch potential defects before they become costly
issues.
Our systems are also equipped with high-resolution cameras and imaging software for the detection of any minimal deviation in the application of solder paste. These systems do this very professional job of recognizing the insufficient amount of paste or misalignment and hence deliver the correct amount of paste in the proper position in every PCB. With the capacity for real-time inspection, we can give instant feedback and move on by making mistakes right. We can maintain high quality on the productions without delays.
We learned that it’s crucial to minimize human error, and our SPI solutions automate inspection processes. We limit the chances for mistakes and amplify efficiency on the line by not having to inspect manually. It also provides comprehensive reporting and analytics, finding recurring issues and trends.
This allows us to make process improvements, further reduce defects, and improve yields with more reliable products.
The technology contributes to the highest degree of accuracy. We take solder paste inspection to the next level with our 3D Solder Paste Inspection technology. The advanced system provides an additional layer of precision in capturing the third dimension of the solder paste deposits, which is so important in detecting variations in height and volume that may lead to defects.
Unlike the conventional 2D inspection methods, our 3D SPI goes a step further in ensuring that even the smallest inconsistencies in paste deposition are detected before they become problematic in production. With this technology, we provide a more accurate height, volume, and registration assessment of the solder paste application on each deposit. We ensure a correct amount is applied at the right height that minimizes occurrences such as an inadequate amount applied or misalignment because the paste can be measured three-dimensionally.
Our vision at ASC International is to give the manufacturers the tools to maintain quality during the manufacturing process. High-quality electronics manufacturing depends on precision, reliability, and defect detection at the earliest possible point. By providing state-of-the-art Solder Paste Inspection machines, we enable manufacturing lines to take their processes one step further, ensuring fewer defects by reducing the chance of manufacturing errors.
We design our systems to integrate seamlessly into your existing production line, minimizing disruption and optimizing your process. We aim to deliver simple, high-performance inspection solutions that really help manufacturers do more with less: reduce time and waste while maintaining quality throughout the production stages.
Solder paste inspection is a critical aspect of electronics manufacturing, and we understand how important it is to detect common issues such as insufficient paste and misalignment before they lead to significant defects. With ASC International’s advanced Solder Paste Inspection system, we ensure that manufacturers can maintain an efficient production process, reduce defects, and achieve higher-quality end products.
Our commitment to precision and innovation in manufacturing helps us provide the best technology available to meet the ever-growing demands of the electronics industry. With ASC International, manufacturers are empowered to produce superior products that meet the highest standards of quality and performance.
To know more about the solder paste inspection solution visit the website now!

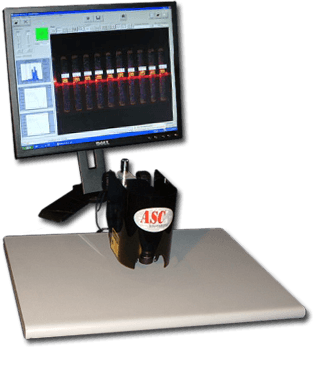

The LaserVision SP3D Mini offers the same level of overall measurement capabilities as the VisionPro SP3D. Utilizing a lower-cost microscope platform and the ability for customers to supply their own PC if needed, the SP3D Mini sets the affordable boundary on reliable, low-cost SPI solutions.

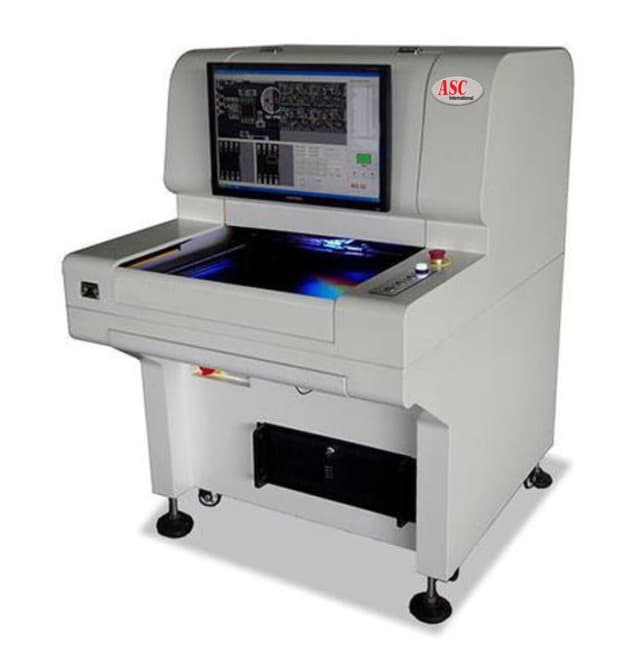

VisionPro HSi is a high-speed, sophisticated 3-dimensional solder paste measurement system coupled with an intuitive Windows® 10/11 Pro user interface, and packaged in a rugged, bench-top portable system designed for the electronics production floor. With only a few minutes of training, an operator can perform accurate 3D measurements of solder paste pads, BGAs, and many other PCB features. VisionPro’s completely automatic solder paste measurement process eliminates operator errors and offers excellent measurement repeatability.

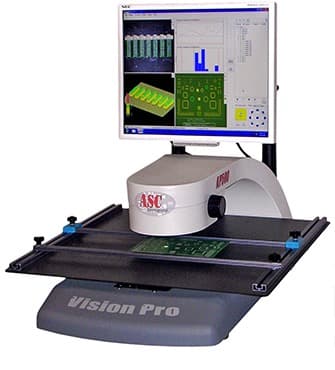

VisionPro AP500, the most popular model of ASC International’s VisionPro AP family, is a sophisticated 3-dimensional solder paste measurement system coupled with an intuitive Windows® user interface, and packaged in a rugged, bench-top system designed for the electronics production floor. With only a few minutes of training, an operator can perform accurate 3D measurements of solder paste pads, BGAs, and many other PCB features. VisionPro AP500’s completely automatic solder paste measurement process eliminates operator errors and offers excellent measurement repeatability.
The VisionPro SP3D offers laser-based accuracy for repeatable and reliable height measurements. Area and Volume can be calculated using template designs from Gerber import or user-defined regions. The ASCan Ultra software package drives the interface to a whole new user experience. Simple to operate, onboard SPC charting with custom data reports and a familiar Windows 10/11 Pro OS makes the VisionPro SP3D an easy choice when it comes to an accurate and reliable 3D Solder Paste Inspection solution.

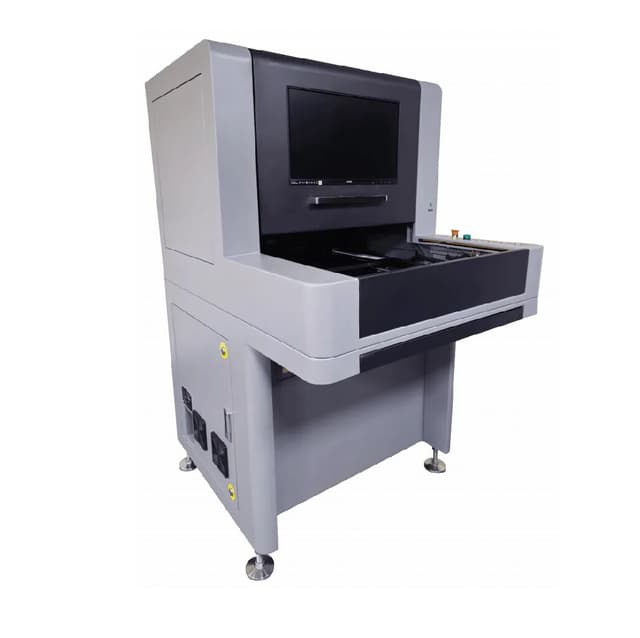

The LineMaster DMi is a revolutionary dual-mode 3D SPI and AOI offline platform combining the best of ASC International’s 3D SPI sensor technology with its sophisticated image / algorithm-based (Modeling) AOI sensor technology for the most comprehensive and value-packed inspection solution available today.

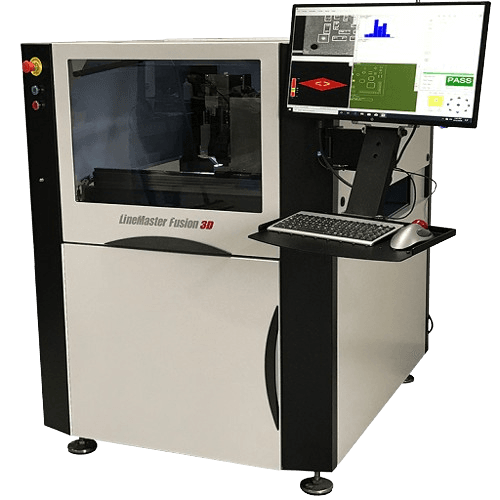

LineMaster Fusion 3D provides a high-speed, inline sophisticated 3-dimensional solder paste measurement system coupled with an intuitive Windows® user interface. With only a few minutes of training, an operator can perform accurate 3D measurements of solder paste pads, BGAs, and many other PCB features. LineMaster’s completely automatic solder paste measurement process eliminates operator errors and offers outstanding repeatability at an affordable price.
The VisionPro M500 system is sophisticated, true 3D technology coupled with an intuitive Windows® 10 OS. Packaged in a rugged, benchtop platform designed for show, engineered for the most advanced measurement requirements found within the stencil printing process. Offering a larger FOV sensor for better coverage and real-time, integrated SPC run charts and data reports, the VisionPro M500 provides exceptional value for the electronics manufacturer concerned with improving production yields.
