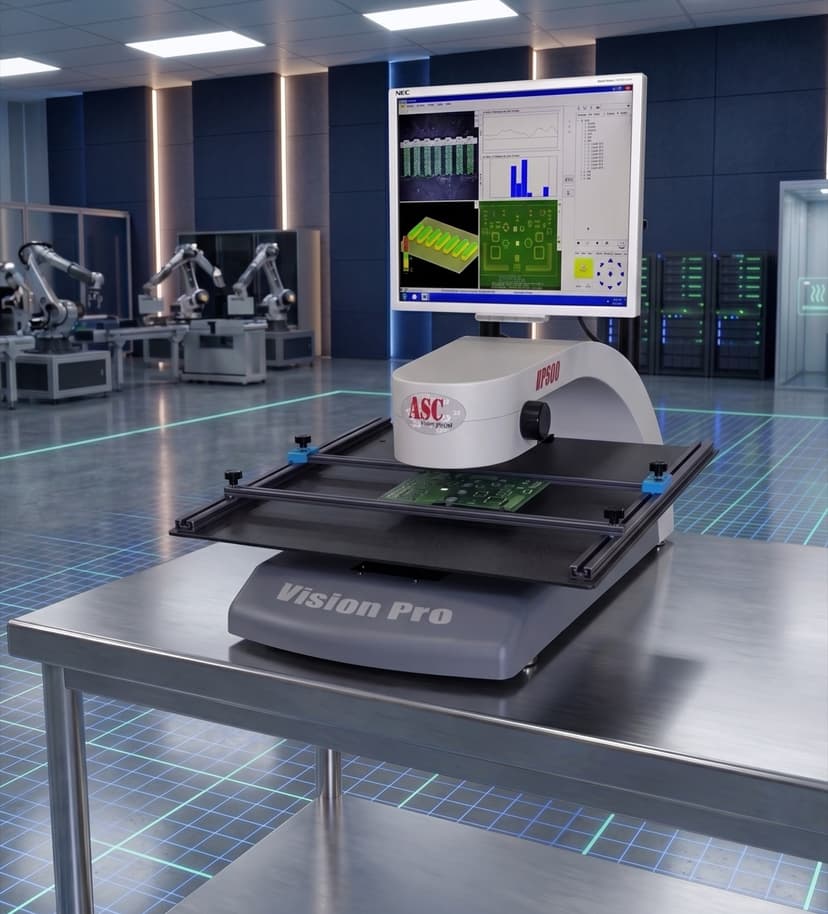

VisionPro AP500
The most popular model in ASC International's VisionPro AP family — a sophisticated 3D solder paste measurement system in a rugged benchtop enclosure built for the production floor.
With only a few minutes of training, an operator can perform accurate 3D measurements of solder paste pads, BGAs, and PCB features. The VisionPro AP500's completely automatic measurement process eliminates operator errors and delivers excellent repeatability across every inspection cycle.
VisionPro AP500 specifications
A fully automated offline 3D SPI system for boards from 25 mm x 25 mm up to 510 mm x 305 mm, programmed from Gerber data in about five minutes.
System Overview
| Standard PCB Size | 305 mm x 457 mm (12.0 x 18.0 in) |
|---|---|
| Minimum PCB Size | 25 mm x 25 mm (1.0 x 1.0 in) |
| Maximum PCB Size | 510 mm x 305mm (20.0 x 12.0 in) |
| PC Controller | Windows 10/11 Pro OS |
| Electrical Requirements | 100-240 VAC, 50-60 Hz, 2 Amps |
| Ambient Operating Temperature | 5˚ - 38˚ C (40˚ - 100˚ F) |
| Ambient Operating Humidity | <90% non-condensing |
Sensor Capabilities
| Sensor Technology | Phase Shift Interferometry (PSI) |
|---|---|
| Integral Video Camera | High Resolution CCD Camera |
| Field of View (FOV) | 8.7 mm x 6.2mm (0.343 x 0.242 in) |
| Illumination | LED-based White Light |
Inspection Performance
| Inspection Speed | 0.33 Sec/FOV |
|---|---|
| Height Accuracy | 1 µm (0.04 mils) |
| Gauge R&R | <<10%, 6 σ |
| Height Resolution | 0.48 µm (0.019 mils) |
| Lateral Resolution (X-Y) | 4.3 µm (0.17 mils) |
| Minimum Paste Deposit | 51 µm (2.0 mils) |
What it measures
- Height
- Width
- Area
- Volume
- Registration
- Bridge Detection
- Realistic 3D Shape Detection
Options
- Offline Programming
- NIST Calibration Standard
- Custom PCB Fixtures
Source: VisionPro AP500 datasheet. Specifications can change; confirm current figures with ASC when you request a quote.
Common questions about the VisionPro AP500
What PCB sizes does the AP500 handle?
Standard PCB size is 305 mm x 457 mm (12.0 x 18.0 in). Boards can be as small as 25 mm x 25 mm (1.0 x 1.0 in) and up to 510 mm x 305mm (20.0 x 12.0 in).
What sensor and resolution does it use?
Phase Shift Interferometry (PSI) with a high resolution CCD camera. Height resolution is 0.48 µm (0.019 mils) and lateral resolution is 4.3 µm (0.17 mils).
How fast is inspection?
0.33 Sec/FOV, with an 8.7 mm x 6.2mm field of view.
Full Specifications
The datasheet covers dimensions, throughput and measurement specifications. Configuration options are quoted against your line.
