VisionPro M500

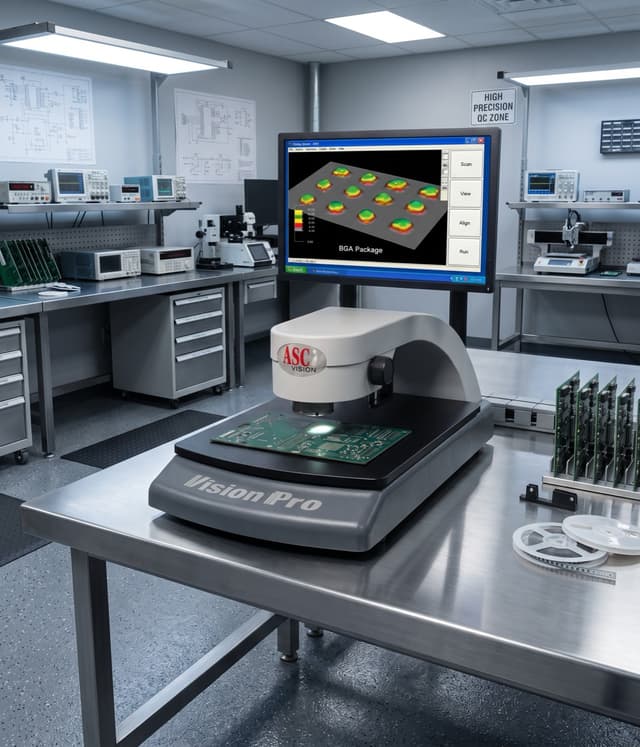

Sophisticated true 3D benchtop SPI system designed for the most advanced measurement requirements in the stencil printing process.
The VisionPro M500 features a larger FOV sensor for better board coverage, 0.48μm Z-resolution, and 6.8μm lateral resolution — delivering real-time integrated SPC run charts and data reports at 0.33 seconds per field of view. When your application demands the highest measurement precision, the M500 delivers.
VisionPro M500 specifications
A benchtop 3D SPI system for measuring paste pads, BGAs and other PCB features on the production floor. The standard 406 mm x 533 mm work surface can be extended to 914 mm x 533 mm.
System Overview
| Standard Work Surface | 406 mm x 533 mm (16.0 x 21.0 in) |
|---|---|
| Optional Large Work Surface | 914 mm x 533 mm (36.0 x 21.0 in) |
| Optional X-Y Manual PCB Fixture | 609 mm x 508 mm (24.0 x 20.0 in) |
| PC Controller | Windows 10/11 Pro OS |
| Electrical Requirements | 100-240 VAC, 50-60 Hz, 2 Amps |
| Ambient Operating Temperature | 5˚ - 38˚ C (40˚ - 100˚ F) |
| Ambient Operating Humidity | <90% non-condensing |
Sensor Capabilities
| Sensor Technology | Phase Shift Interferometry (PSI) |
|---|---|
| Integral Video Camera | High Resolution CCD Camera |
| Illumination | LED-based White Light |
Inspection Performance
| Inspection Speed | 0.33 Sec/FOV |
|---|---|
| Height Accuracy | 1 µm (0.04 mils) |
| Gauge R&R | <<10%, 6 σ |
| Height Resolution | 0.48 µm (0.019 mils) |
| Minimum Paste Deposit | 51 µm (2.0 mils) |
What it measures
- Height
- Width
- Area
- Volume
- Registration
- Bridge Detection
- Realistic 3D Shape Detection
Options
- Offline Programming
- NIST Calibration Standard
- Custom PCB Fixtures
Source: VisionPro M500 datasheet. Specifications can change; confirm current figures with ASC when you request a quote.
Common questions about the VisionPro M500
How large is the work surface?
406 mm x 533 mm (16.0 x 21.0 in) as standard. An optional large work surface measures 914 mm x 533 mm (36.0 x 21.0 in), and the optional X-Y manual PCB fixture is 609 mm x 508 mm (24.0 x 20.0 in).
How fast is it, and how fine is the height measurement?
The datasheet lists 0.33 Sec/FOV, with a height resolution of 0.48 µm (0.019 mils).
Full Specifications
The datasheet covers dimensions, throughput and measurement specifications. Configuration options are quoted against your line.
