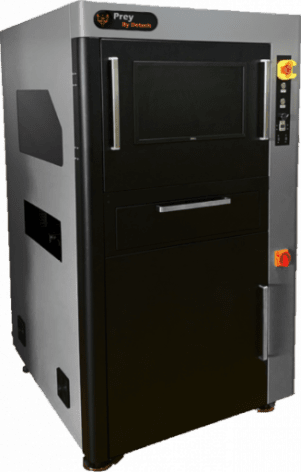

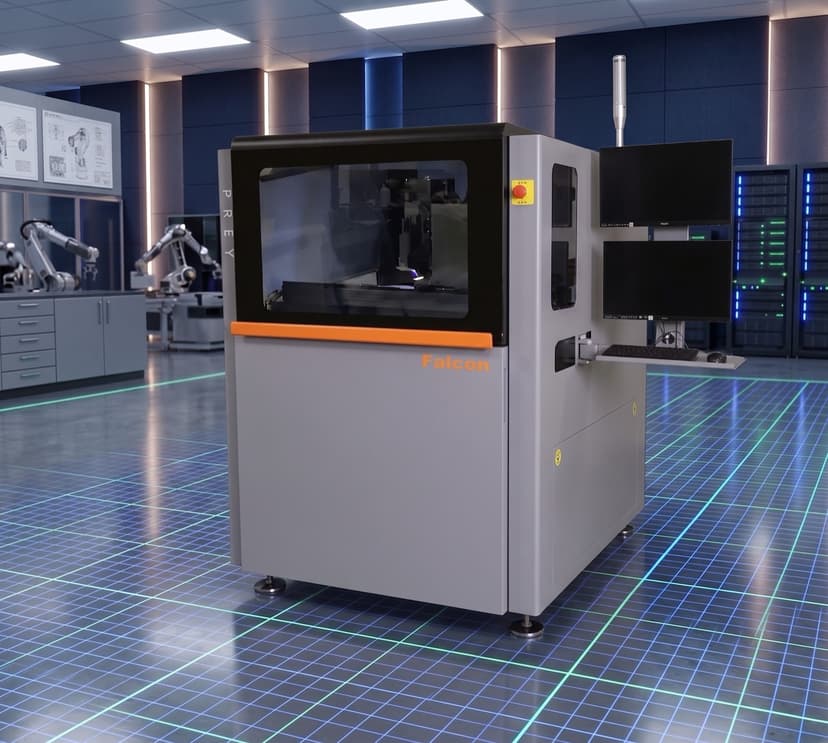

LineMaster Falcon Plus

Dual Mode AOI – SPI

The LineMaster Falcon Plus by Prey AOI solution provides manufacturers with an all-in-one solution to validate the overall variables and attributes associated with both the solder printing process and component placement.  3D SPI technology for height, area, width, volume, X-Y registration and State-of-the-art AOI technology to detect attributes such as absence – presence, polarity, OCR, solder inspection and lead quality – all with very low false call rates.  The LineMaster Falcon Plus by Prey provides an exceptional value proposition that is truly unmatched in the industry.

Call ASC today for a free consultation and onsite evaluation.

Call Now for Inquiry

Description

Key Features & Benefits

  • Fully Automated Inline Automated Optical Inspection and 3D SPI
  • 12 MP High-Resolution Color Camera with Detech2 Technology
  • Windows 11 Pro OS
  • Industry Leading – Ease of Use Programming, Lowest False Calls
  • Dual Laser Option for Lead and Component Height Verification
  • Fully Integrated SPC Run-time charts and Custom Reports
  • Offline Defect Review Station Software
  • Offline Programming Software
  • Two-Year, End-User Warranty with Technical Support
  • 20″ x 20″ Inspection Area – Up to 48″ x 20″ Extended Travel
  • Hardware/Software Reference and Online Help

AOI Specifications

Technology Image Modeling – Algorithm Based
Defect Analysis Missing, Incorrect Part, Bridging, Polarity, Tombstone
Solderability, Alignment, Lifted or Bent Leads, etc.
Board Capacity 20″ x 20″ Standard – Up to 48″ x 20″
Lighting Scheme RGBW
Lateral Resolution (X-Y) 7um- 10µm – 15um
Minimum Component Size 01005
