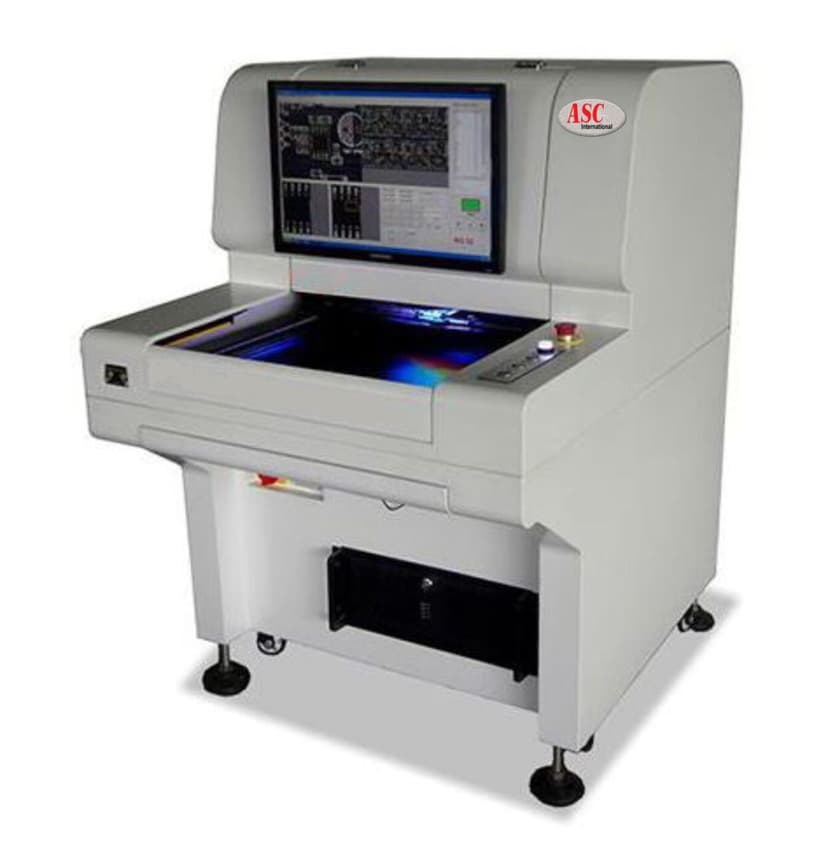

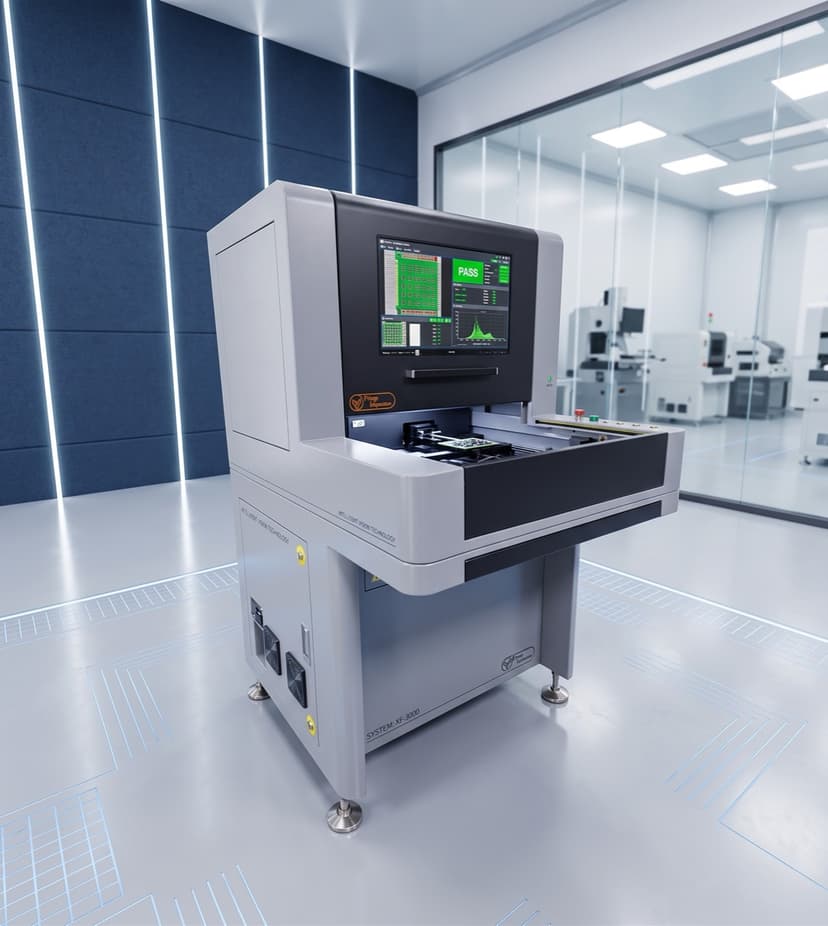

VisionPro HSi
High-speed offline 3D solder paste measurement system packaged in a rugged, portable benchtop unit designed for the electronics production floor.
With minimal training, operators can perform accurate 3D measurements of solder paste pads, BGAs, and PCB features. The VisionPro HSi's completely automatic measurement process eliminates operator errors and delivers excellent repeatability — backed by a Windows 10/11 Pro interface built for the production environment.
VisionPro HSi specifications
An offline 3D SPI system with a high-speed positioning system for boards up to 350 mm x 450 mm, or 560 mm x 660 mm with the large PCB option. Programs come straight from Gerber/CAD data.
General System Specifications
| Maximum Object Thickness | 5.1 cm (2.0 inches) |
|---|---|
| Standard PCB Size | 350mm x 450mm (14” x 18”) |
| Large PCB Size System | 560mm x 660mm (22” x 26”) |
| Electrical Requirements | 100-240 VAC, 50-60 Hz, 2 Amps |
| Ambient Operating Temperature | 15˚ - 28˚ C (60˚ - 82˚ F) |
| Ambient Operating Humidity | <90% non-condensing |
Sensor Specifications
| Sensor Technology | Phase Shift Interferometry (PSI) |
|---|---|
| Measurement Range | 429µm (16.9 mils) |
| Integral Video Camera | High Resolution Color CCD Camera |
| Field of View (FOV) | 24mm x 26mm |
| Illumination | LED-based white light |
Inspection Performance
| Inspection Speed | .33 Sec./FOV |
|---|---|
| Height Accuracy | 1µm (0.00004”) |
| Gauge R&R | <<10% (+/- 40% Tolerance) |
| Z Resolution | 1.78 µm |
| Minimum Paste Deposit | 51µm (.002”) |
What it measures
- Height
- Area
- Volume
- X-Y Registration
- Standard Deviation
Standard system includes
- 350mm x 450mm (14” x 18”) High Speed Positioning System
- PSI 1000 Sensor
- Integrated SPC with Customer User Defined Reports
- Gerber / CAD Programming
- Simple to Use Quad Mode Interface
Options
- NIST Calibration Standard
- Extended PCB up to 560mm x 660mm (22” x 26”)
Source: VisionPro HSi datasheet. Specifications can change; confirm current figures with ASC when you request a quote.
Common questions about the VisionPro HSi
What sensor does the HSi use?
A PSI 1000 sensor using Phase Shift Interferometry (PSI), with a high resolution color CCD camera and LED-based white light.
What board sizes does it take?
350mm x 450mm (14” x 18”) as standard. The large PCB size system, offered as an option, extends that to 560mm x 660mm (22” x 26”).
How fast does it inspect?
The datasheet lists .33 Sec./FOV over a 24mm x 26mm field of view.
How is an inspection program created?
By Gerber/CAD import in ASCan Ultra. The sheet says a fully automated inspection routine can be built in less than 10 minutes, and run mode reports a final PASS or FAIL per program.
Full Specifications
The datasheet covers dimensions, throughput and measurement specifications. Configuration options are quoted against your line.
