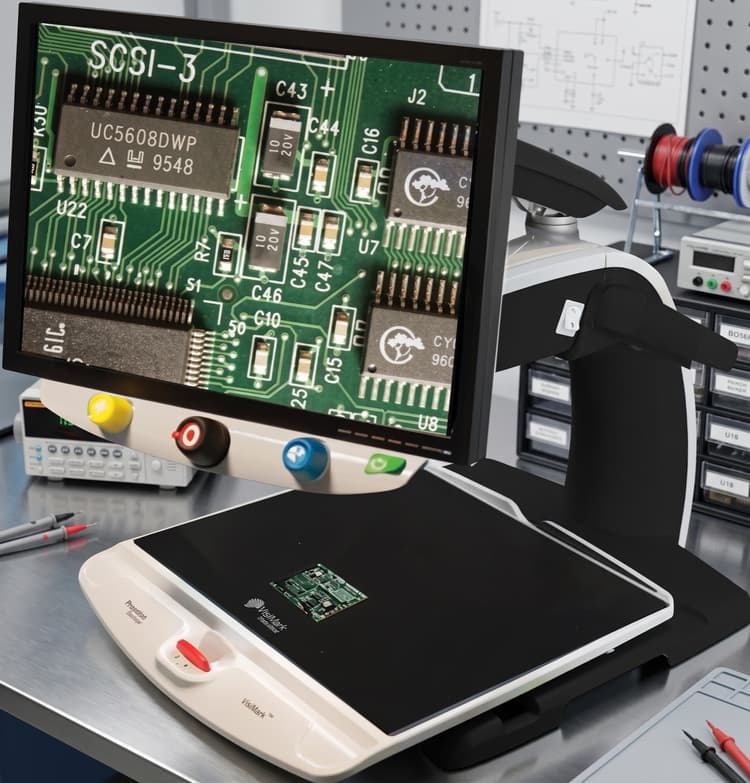

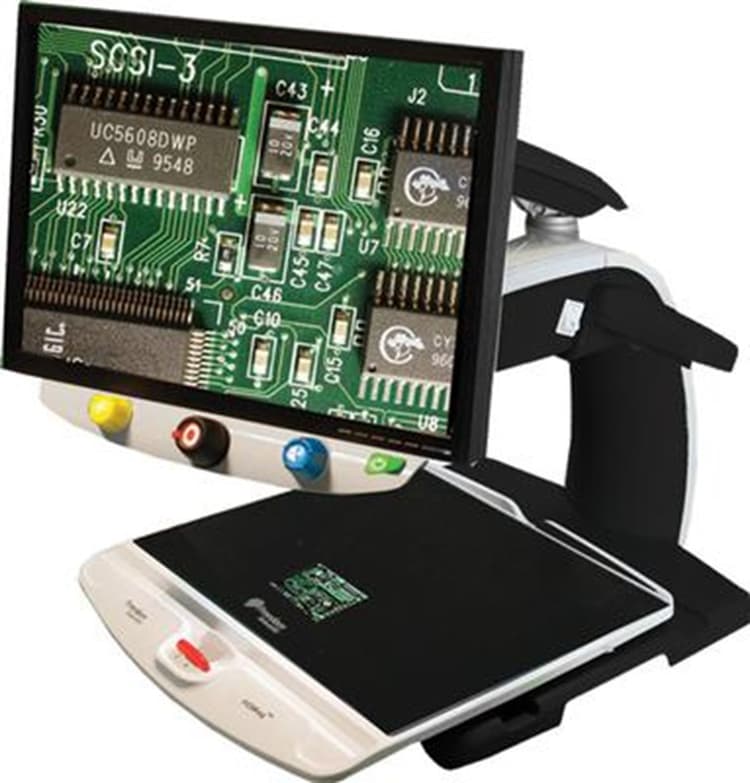

MSS 130 DVI
Plug-and-play digital video inspection scope that connects to any computer and provides powerful imaging enhancement tools along with precise measurement capabilities.
The MSS 130 DVI supports measurement of lines, circles, angles, center points, and arcs. Compatible with a variety of lenses and fully controllable lighting systems, it can be networked to connect multiple digital scopes across a facility — enabling centralized quality review and collaborative inspection workflows.
MSS 130 DVI specifications
A digital microscope for manual visual inspection and on-screen measurement at the bench, with a 115 mm working distance and up to 106x displayed magnification.
Optical Magnification
| Fix Optic lens | 0.5x (Optional 0.3x, 0.75x, 1.0x, 1.5x, 2.0x) |
|---|---|
| Magnify Lens Adjustable | 0.7x ~4.5x |
| Working distance | 115mm |
| Focusing | Manual |
| Angle adjustment Camera | 10º, 15º, 30º, 40º Optional |
| Camera | 1.3 M-pixel, USB output. 640 x 480 at 30fps |
Total Monitor Displayed Magnification (Optical with Digital)
| 14 inches Monitor | 60x |
|---|---|
| 15 inches Monitor | 64x |
| 17 inches Monitor | 72x |
| 21 inches Monitor | 88x |
| 25 inches Monitor | 106x |
Electrical
| LED Lighting | With Brightness Controller AC 100 - 240V 50/60Hz |
|---|---|
| Camera | Supply through USB |
| Operating Environment | 0 - 40 ° C |
What it measures
- Line
- Circle
- Angle
- Center Point
- Arc
Standard system includes
- Camera
- Camera slider
- 0.5x optic lens
- 0.7x to 4.5x magnifying lens
- LED lighting with controller
- Base with pole
Options
- Fixed optic lens 0.3x, 0.75x, 1.0x, 1.5x or 2.0x
- Angle adjustment camera 10º, 15º, 30º, 40º
- Networking one computer with multiple digital scopes
Source: MSS 130 Digital Scope datasheet. Specifications can change; confirm current figures with ASC when you request a quote.
Common questions about the MSS 130 DVI
What magnification does it reach?
Optical: a 0.5x fixed lens plus a 0.7x to 4.5x adjustable magnifying lens. Displayed magnification depends on monitor size, from 60x on a 14 inch monitor to 106x on a 25 inch monitor.
What is the working distance?
115mm, with manual focusing.
How does the camera connect?
By USB. The 1.3 M-pixel camera outputs 640 x 480 at 30fps and is powered through USB. A USB2.0 interface is required.
What can it measure on screen?
Line, circle, angle, center point and arc.
Full Specifications
The datasheet covers dimensions, throughput and measurement specifications. Lens and lighting options are quoted against your line.
