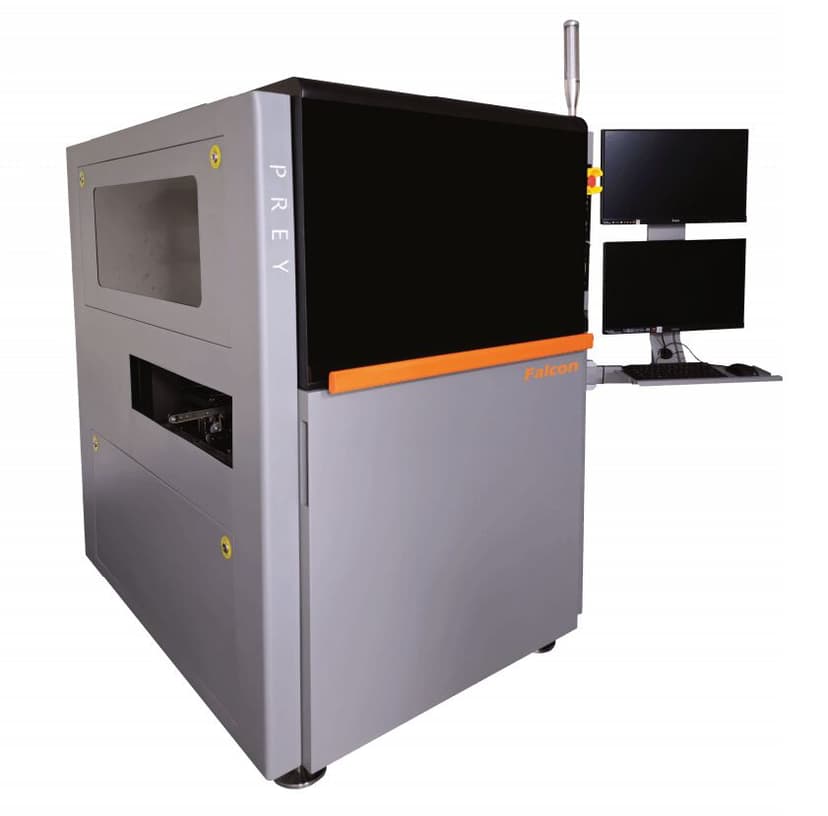

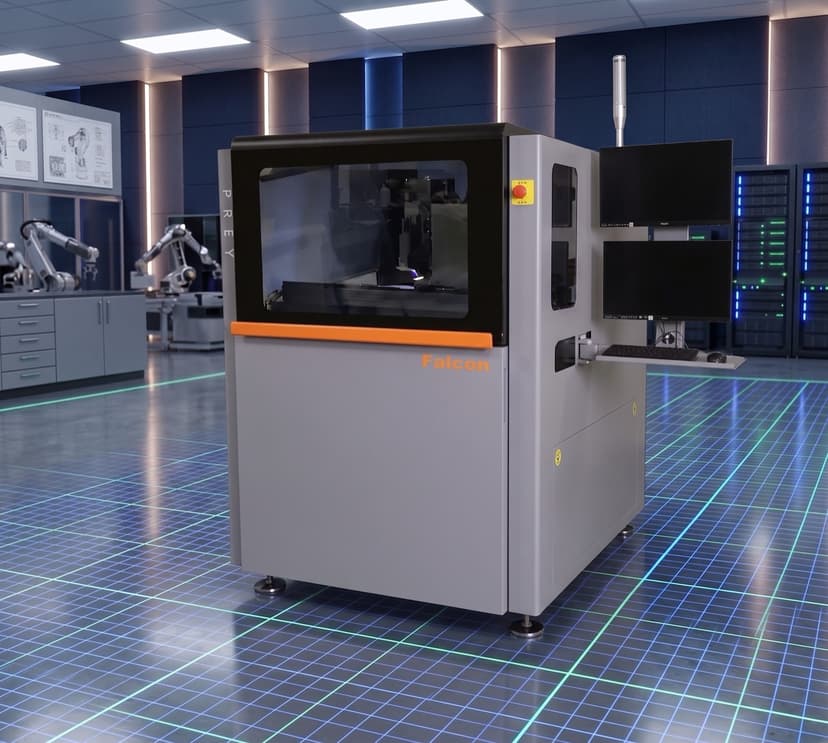

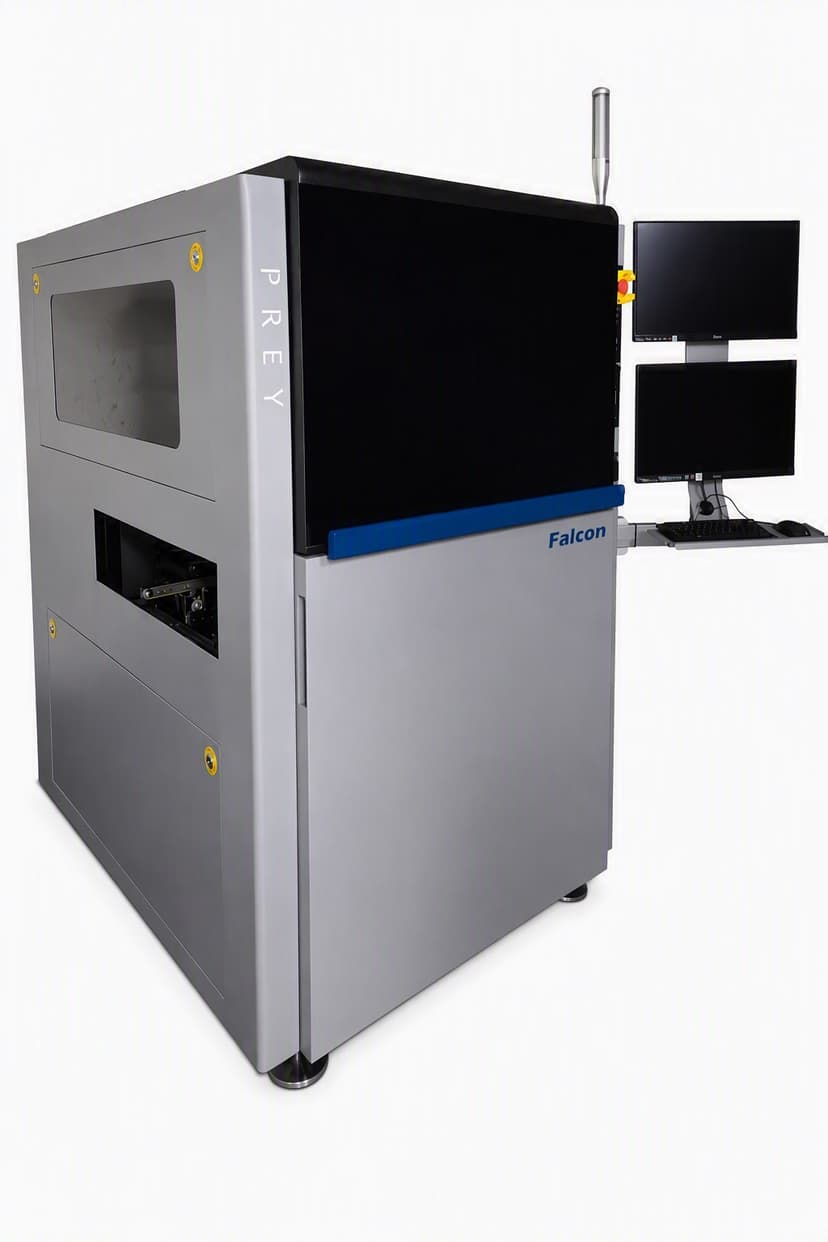

LineMaster Falcon
Affordable inline 2D-3D automated optical inspection powered by Detech2 Technology — designed to deliver professional inspection capability without the premium price.
The LineMaster Falcon detects absence/presence, polarity, OCR, solder defects, and lead quality with very low false call rates. A 12 MP CCD camera with a telecentric lens and RGBW+ (UV) lighting inspects components down to 01005 on boards up to 20″ × 20″ standard, or 800 × 510 mm with the optional carrier. A laser sensor for height checks is optional.
LineMaster Falcon specifications
An inline AOI on an Ethernet / SMEMA line, inspecting 01005 and larger parts on boards up to 510 mm x 510 mm standard. The optional carrier takes boards up to 800 mm x 510 mm.
System Overview
| Software Package | Detech 2 / ASCAN Ultra |
|---|---|
| Minimum Component Size | 01005 and Above |
| Operating System | Windows 11 Pro |
| Communication | Ethernet / SMEMA |
| Electrical Requirements | 100-240 VAC, 50-60 Hz, 2 Amps |
| Ambient Operating Temperature | 5˚ - 38˚ C (40˚ - 100˚ F) |
| Ambient Operating Humidity | <90% non-condensing |
Vision System
| Camera Technology | 12MP CCD Camera |
|---|---|
| Lens Technology | Telecentric |
| X-Y Pixel Resolution | 8 um (0.31 mils) |
| Field of View (FOV) | 45 mm x 30 mm (1.77 x 1.18 in) |
| Illumination | RGBW+ (UV) |
Inspection Performance
| Standard PCB Size | 510 mm x 510 mm (20.0 x 20.0 in) |
|---|---|
| Minimum PCB Size | 50 mm x 50 mm (2.0 x 2.0 in) |
| Maximum PCB Size (Optional) | 800 mm x 510 mm |
| PCB Thickness | 0.6 mm - 8 mm |
| Top / Bottom Clearance | 45 mm / 40 mm |
| Board Weight | 3 Kg (6.61 lbs) |
System Dimensions
| Dimensions (H x W x L) | 165 cm (65”) x 101 cm (40”) x 132 cm (52”) |
|---|
What it measures
- Presence/Absence
- Polarity
- Offset
- OCV /OCR
- Billboarding
- Tombstone
- Lifted leads
- Missing Solder
- Bridging
Options
- Offline Workstations
- Laser Sensor
- Conformal Coating (UV)
- 3D SPI Sensor
Source: LineMaster Falcon datasheet. Specifications can change; confirm current figures with ASC when you request a quote.
Common questions about the LineMaster Falcon
How does the Falcon connect to the line?
Communication is listed as Ethernet / SMEMA.
What board sizes does it handle?
Standard PCB size is 510 mm x 510 mm, minimum 50 mm x 50 mm, with an optional maximum of 800 mm x 510 mm. Thickness range is 0.6 mm to 8 mm.
What software does it run?
Detech 2 / ASCAN Ultra on Windows 11 Pro, with fully integrated real-time SPC and custom user defined reports.
Can it check height, conformal coating or paste?
Only with options. The sheet lists a laser sensor, conformal coating (UV) and a 3D SPI sensor as options.
Full Specifications
The datasheet covers dimensions, camera and vision system specs, and full defect detection capabilities.
