Dual ModeSPI + AOIOffline

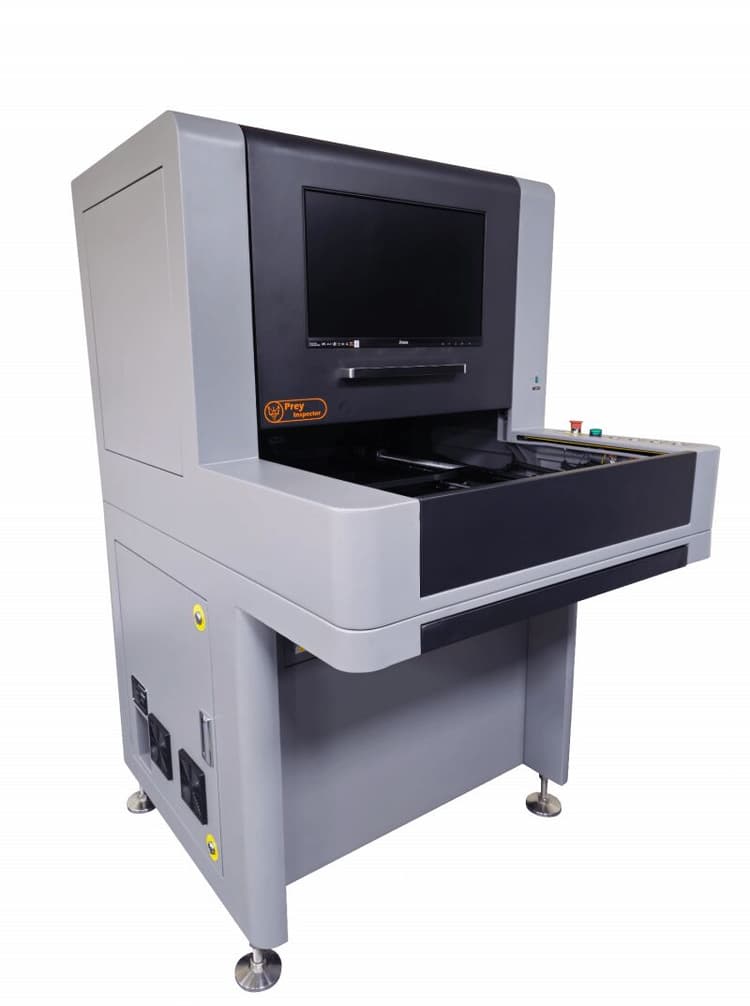

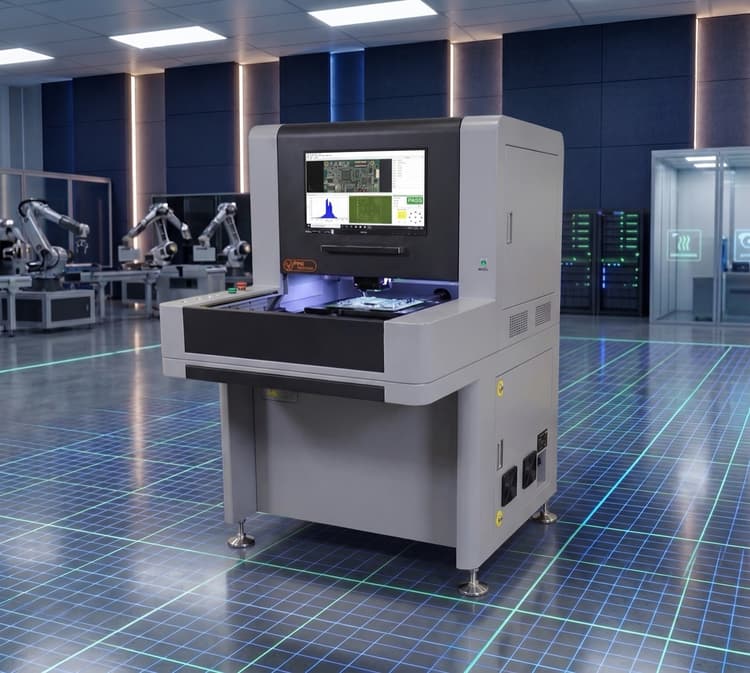

LineMaster DMI
A revolutionary dual-mode offline platform that merges ASC International's 3D SPI sensor technology with image and algorithm-based AOI in a single system.
The LineMaster DMI inspects both the solder paste printing process and component placement in one pass — detecting missing parts, incorrect components, bridging, polarity issues, tombstoning, and more. With lateral resolution down to 10–15μm, the DMI handles 01005 components and the most demanding miniaturization requirements.
3D SPI + AOI in a single offline platform
Detects missing parts, polarity, bridging
Lateral resolution: 10–15μm
Inspects 01005 components
Image and algorithm-based AOI engine
Phase-shift 3D solder paste measurement
Tombstoning and lift detection
One system for paste and placement inspection
Full Specifications
The datasheet covers dimensions, camera and vision system specs, and full defect detection capabilities.
