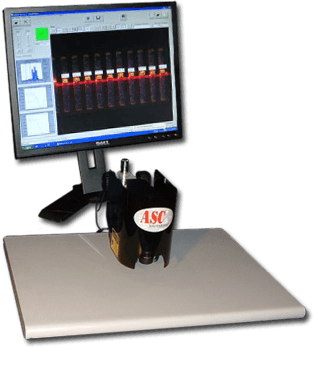

LaserVision SP3D Mini
Affordable laser-based 3D SPI system offering the same overall measurement capabilities as the VisionPro SP3D on a lower-cost platform.
The LaserVision SP3D Mini makes accurate 3D solder paste inspection accessible without the premium price. Customers can supply their own PC, further reducing total cost of ownership. It has become the standard entry point for operations looking for reliable, accurate 3D SPI within a tight budget.
LaserVision SP3D Mini specifications
An entry-level benchtop instrument for measuring paste height, width, area and volume one site at a time, with integrated SPC. The sheet pitches it at manufacturers who want paste process control on a limited budget.
General System Specifications
| Maximum Object Thickness | 5.1 cm (2.0”) |
|---|---|
| Standard Work Surface | 61 x 61 cm (24” x 24”) |
| Throat Depth (Sensor to Rear Support) | 22 cm (8.5”) |
| Electrical Requirements | 100 - 240 VAC, 50 - 60 Hz, 2 Amps |
| Ambient Operating Temperature | 5 °C - 38 °C (40 °F - 100 °F) |
| Ambient Operating Humidity | <90 % Non-condensing |
| System Weight | 18 Kg (40 lbs.) |
| Crated System Weight | 40 Kg (88 lbs.) |
| SPC Charting/ Data Reports | Integrated |
| Work Instructions | Built-in |
Sensor Specifications
| Measurement Principle | Laser Technology |
|---|---|
| Camera (Pixel) | 1280 x 1024 |
| Lateral Resolution | 3.5 µm (0.14 mils) |
| FOV Size | 4.8 x 3.6 mm (186 x 142 mils) |
| Z Resolution | 2.5 µm (0.1 mil) |
| Measurement Range | 2.5 mm (100 mils) |
| Illumination | LED White Light with Laser |
Inspection Performance
| Inspection Speed | 60 Frames/sec. |
|---|---|
| Static Repeatability | 2.5 µm (0.1 mil) |
| Gauge R&R (±50% tolerance on PCB) | <10 % |
| Minimum Paste Deposit Size | 127 µm (5 mils) |
What it measures
- Height
- Width
- Area
- Volume
- Solder Paste, Adhesives, Grease and More
Standard system includes
- High Resolution CMOS Color Camera and Class II Laser
- Anti-static Work Surface
- Hardware/Software Reference Manuals
Options
- Laser Scanning Module for Producing 3D Profiles
- NIST Calibration Tool
- Extended Warranty Options
Source: LaserVision SP3D Mini datasheet. Specifications can change; confirm current figures with ASC when you request a quote.
Common questions about the LaserVision SP3D Mini
What does the SP3D Mini measure?
Solder paste height, width, area and volume. The sheet says it also measures adhesives and grease.
How small a paste deposit can it measure?
Minimum paste deposit size is 127 µm (5 mils). Lateral resolution is 3.5 µm and Z resolution is 2.5 µm.
How big a board fits?
The standard work surface is 61 x 61 cm (24” x 24”), with 22 cm (8.5”) throat depth from sensor to rear support and a maximum object thickness of 5.1 cm (2.0”).
Does it produce 3D profiles?
Only with the optional Laser Scanning Module for Producing 3D Profiles.
Full Specifications
The datasheet covers dimensions, throughput and measurement specifications. Configuration options are quoted against your line.
