VisionPro Merlin XL

Large Board AOI

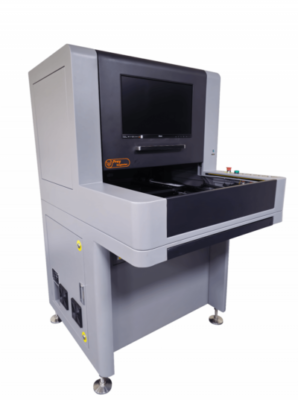

The VisionPro Merlin XL AOI solution from ASC International builds upon the industry-leading Merlin with the addition of a larger platform to manage oversized boards. Accepting boards as large as 26″ x 22″. The Merlin XL meets the needs of those companies requiring large board capacity.

Description

Key Features & Benefits

Programming by Centroid / CAD (CPL Data)
Realtime SPC Charts
Custom Reports
Program Optimization
OCR Recognition
CAD Import Programming
Large 26″ x 22″ Inspection
Windows 10/11 Pro OS
Sturdy Stand-alone Platform
Bar Code Reader
Optional Defect Review Work Station

Specifications
Technology	Image Modeling – Algorithm Based
Defect Analysis	Missing, Incorrect Part, Bridging, Polarity, Tombstone
	Solderability, Alignment, Lifted or Bent Leads, etc.
Board Capacity	26″ x 22″ Standard
Lighting Scheme	RGBW
Lateral Resolution (X-Y)	10µm – 15um
Minimum Component Size	01005
