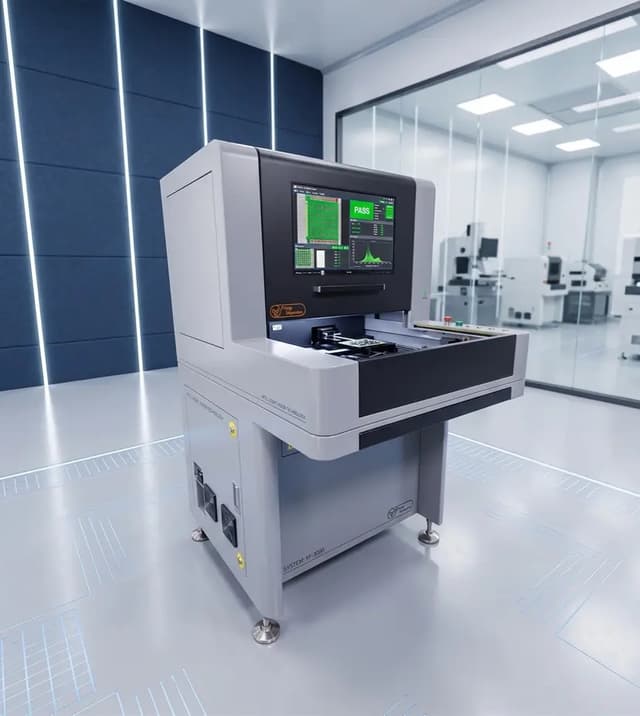

VisionPro Merlin
Affordable offline 2D-3D automated optical inspection system using Detech2 Technology for comprehensive component and solder quality verification.
The VisionPro Merlin detects absence/presence, polarity, OCR, solder defects, and lead quality with very low false call rates. It uses a 12 MP CCD camera with a telecentric lens over a standard 20″ × 16″ board area, with 24″ × 20″ available as an option. A laser sensor for component and lead height is also optional.
VisionPro Merlin specifications
An offline AOI station for boards up to 510 mm x 408 mm (609 mm x 508 mm optional) with components down to 01005. Laser height, UV conformal coating and 3D SPI checks are added as options.
System Overview
| Software Package | Detech 2 |
|---|---|
| Minimum Component Size | 01005 and Above |
| Operating System | Windows 11 Pro |
| Communication | Ethernet / SMEMA |
| Electrical Requirements | 100-240 VAC, 50-60 Hz, 2 Amps |
| Ambient Operating Temperature | 5˚ - 38˚ C (40˚ - 100˚ F) |
| Ambient Operating Humidity | <90% non-condensing |
Vision System
| Camera Technology | 12MP CCD Camera |
|---|---|
| Lens Technology | Telecentric |
| X-Y Pixel Resolution | 8 um (0.31 mils) |
| Field of View (FOV) | 45 mm x 30 mm (1.77 x 1.18 in) |
| Illumination | RGBW+ (UV) |
Inspection Performance
| Standard PCB Size | 510 mm x 408 mm (20.0 x 16.0 in) |
|---|---|
| Minimum PCB Size | 50 mm x 50 mm (2.0 x 2.0 in) |
| Maximum PCB Size (Optional) | 609 mm x 508 mm |
| PCB Thickness | 0.6 mm - 8 mm |
| Top / Bottom Clearance | 45 mm / 40 mm |
| Board Weight | 3 Kg (6.61 lbs) |
System Dimensions
| Dimensions (H x W x L) | 1680 mm x 973 mm x 1191 mm |
|---|
What it measures
- Presence/Absence
- Polarity
- Offset
- OCV /OCR
- Billboarding
- Tombstone
- Lifted leads
- Missing Solder
- Bridging
Options
- Offline Workstations
- Laser Sensor
- Conformal Coating (UV)
- 3D SPI Sensor
Source: VisionPro Merlin datasheet. Specifications can change; confirm current figures with ASC when you request a quote.
Common questions about the VisionPro Merlin
What is the smallest component the Merlin can inspect?
The datasheet lists a minimum component size of 01005 and above.
What board sizes does it accept?
Standard PCB size is 510 mm x 408 mm. Minimum is 50 mm x 50 mm. An optional maximum of 609 mm x 508 mm is listed. Board thickness is 0.6 mm to 8 mm and board weight is 3 Kg.
Does it measure component or lead height?
Not in the standard configuration. A laser sensor for component and lead height validation is listed as an option.
What camera and resolution does it use?
A 12MP CCD camera with a telecentric lens, 8 um (0.31 mils) X-Y pixel resolution and a 45 mm x 30 mm field of view.
Full Specifications
The datasheet covers dimensions, camera and vision system specs, and full defect detection capabilities.
